| 品牌 : | HIP | 型號 : | 10-11AF6 |
| 加工定制 : | 是 | 公稱壓力 : | 150000PSI |
| 公稱直徑 : | 5 | 產品別名 : | 高壓針閥 |
| 材質 : | 不銹鋼 | 連接形式 : | 螺紋 |
| 壓力環境 : | 高壓 | 工作溫度 : | 常溫 |
| 標準 : | 美標 | 類型 : | 直通式 |
| 外形 : | 中型 | 流動方向 : | 雙向 |
| 形態 : | 針閥 | 零部件及配件 : | 閥體 |
| 用途 : | 截止 |

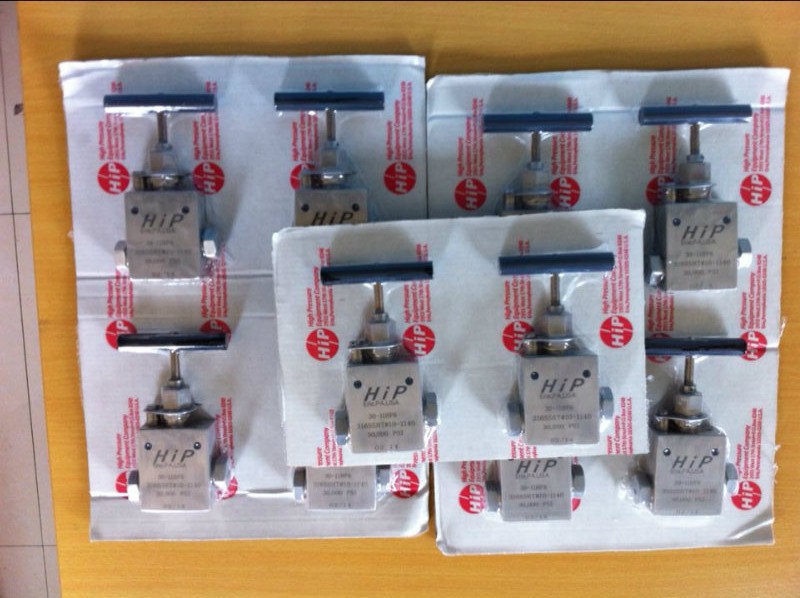

美國HIP高壓針閥技術參數
1.工作壓力范圍：10,000psi --150,000psi
2.連接形式：卡套連接和高壓錐管連接
3.連接尺寸：Φ1/8"、Φ1/4"、Φ3/8"、Φ9/16"、Φ3/4"、Φ1"
4.材質：316不銹鋼
5.工作介質：大多數氣體和液體介質
6.工作溫度：可達到340℃
HIP高壓閥門高壓管件高壓接頭特性：
1、閥門，管件，接頭等一系列標準產品，其材質均為316不銹鋼；
2、6種閥門形式，滿足客戶要求；
3、3種閥桿設計：可靠導向性，滾動型，針狀閥桿型；
4、高壓硬管規格：7種外徑、其材質均采用高強度不銹鋼、其工藝采用冷拔。無縫加工而成；
5、所有閥門可選擇氣動控制；
6、閥門的工作溫度：Teflon密封材質232度、Viton密封材質176度、BUNA-N密封材質93度、Grafoil密封材質343度。
直通高壓針閥
| 接管 | 型號 | psi | 連接 | 節流口(") | D(") | E(") | F(") | G(") | H(") | J(") | K(") | L(") | 厚度(") |
| 1/16"O.D. | 15-11AF1 | 15,000 | AF1 | 0.052 | 21/2 | 11/8 | 1/4 | 13/32 | 11/8 | 5/16 | 3/4 | 9/64 | 1/2 |
| 1/8"0.D. | 15-11AF2 | 15,000 | AF2 | 1/16 | 31/8 | 11/2 | 11/16 | 15/16 | 113/16 | 5/16 | 7/8 | 9/64 | 3/4 |
| 1/4"O.D. | 10-11AF4 | 10,000 | AF4 | 1/8 | 45/8 | 2 | 1/2 | 1/2 | 17/8 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"O.D. | 10-11AF6 | 10,000 | AF6 | 1/8 | 45/8 | 2 | 1/2 | 1/2 | 17/8 | 1/2 | 13/8 | 7/32 | 1 |
| 1/8"NPT | 10-11NFA | 10,000 | NFA | 1/8 | 43/4 | 2 | 7/8 | 7/8 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 1/4"NPT | 10-11NFB | 10,000 | NFB | 1/8 | 43/4 | 2 | 7/8 | 7/8 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"NPT | 10-11NFC | 10,000 | NFC | 1/8 | 43/4 | 2 | 7/8 | 7/8 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 1/2"NPT | 10-11NFD | 10,000 | NFD | 5/16 | 55/8 | 25/8 | 3/4 | 13/8 | 31/8 | 1/2 | 15/8 | 5/16 | 11/2 |
| 1/8"NPT | 15F-11NFA | 15,000 | NFA | 0.203 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 1/4"NPT | 15F-11NFB | 15,000 | NFB | 0.203 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 3/8"NPT | 15F-11NFC | 15,000 | NFC | 0.312 | 61/8 | 21/2 | 1/2 | 11/8 | 27/8 | 1/2 | 13/8 | 11/32 | 1 |
| 1/2"NPT | 15F-11NFD | 15,000 | NFD | 0.312 | 63/8 | 25/8 | 3/4 | 13/8 | 31/8 | 1/2 | 13/8 | 11/32 | 11/2 |
| 3/4"NPT | 10F-11NFF | 10,000 | NFF | 0.687 | 81/2 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1"NPT | 10F-11NFH | 10,000 | NFH | 0.687 | 81/2 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1/4"O.D. | 20-11LF4 | 20,000 | LF4 | 1/8 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 3/8"O.D. | 20-11LF6 | 20,000 | LF6 | 13/64 | 43/8 | 2 | 3/8 | 13/16 | 2 | 3/8 | 11/4 | 7/32 | 3/4 |
| 9/16"O.D. | 20-11LF9 | 20,000 | LF9 | 5/16 | 61/8 | 21/2 | 1/2 | 11/8 | 27/8 | 1/2 | 13/8 | 11/32 | 1 |
| 3/4"O.D. | 20-11LF12 | 20,000 | LF12 | 7/16 | 7 | 3 | 3/4 | 11/2 | 33/4 | 5/8 | 13/4 | 7/16 | 13/8 |
| 3/4"O.D. | 10-11LF12 | 10,000 | LF12 | 33/64 | 7 | 3 | 3/4 | 11/2 | 33/4 | 5/8 | 13/4 | 7/16 | 13/8 |
| 1"O.D. | 20-11LF16 | 20,000 | LF16 | 9/16 | 827/64 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1"O.D. | 10-11LF16 | 10,000 | LF16 | 11/16 | 827/64 | 41/8 | 7/8 | 113/16 | 45/8 | 11/8 | 21/2 | 9/16 | 13/4 |
| 1/8"O.D. | 30-11HF2 | 30,000 | HF2 | 1/16 | 31/4 | 11/2 | 11/16 | 15/16 | 113/16 | 5/16 | 7/8 | 9/64 | 3/4 |
| 1/4"O.D. | 30-11HF4 | 30,000 | HF4 | 3/32 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"O.D. | 30-11HF6 | 30,000 | HF6 | 1/8 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 9/16"O.D. | 30-11HF9 | 30,000 | HF9 | 1/8 | 55/8 | 25/8 | 1 | 17/16 | 27/8 | 1/2 | 13/8 | 7/32 | 11/2 |
| 1"O.D. | 30-11HF16 | 30,000 | HF16 | 7/16 | 827/64 | 41/8 | 15/16 | 111/16 | 47/16 | 11/8 | 21/2 | 9/16 | 13/4 |
| 9/16"O.D. | 40-11HF9 | 40,000 | HF9 | 1/8 | 55/8 | 25/8 | 1 | 17/16 | 27/8 | 1/2 | 15/8 | 7/32 | 11/2 |
| 1/8"O.D. | 60-11HF2 | 60,000 | HF2 | 1/16 | 53/16 | 2 | 5/8 | 15/16 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 1/4"O.D. | 60-11HF4 | 60,000 | HF4 | 1/16 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 3/8"O.D. | 60-11HF6 | 60,000 | HF6 | 1/16 | 53/16 | 2 | 5/8 | 1 | 27/16 | 1/2 | 13/8 | 7/32 | 1 |
| 9/16"O.D. | 60-11HF9 | 60,000 | HF9 | 1/16 | 55/8 | 25/8 | 1 | 17/16 | 27/8 | 1/2 | 13/8 | 7/32 | 11/2 |
| 1/4"O.D. | 100-11XF4 | 100,000 | XF4 | 1/16 | 5 | 25/8 | 3/4 | 11/16 | 21/2 | 1/2 | 15/8 | 7/32 | 11/2 |
| 3/8"O.D. | 150-11XF6 | 150,000 | XF9 | 1/16 | 5 | 31/2 | 7/8 | 13/16 | 25/8 | 1/2 | 15/8 | 7/32 | 11/2 |
