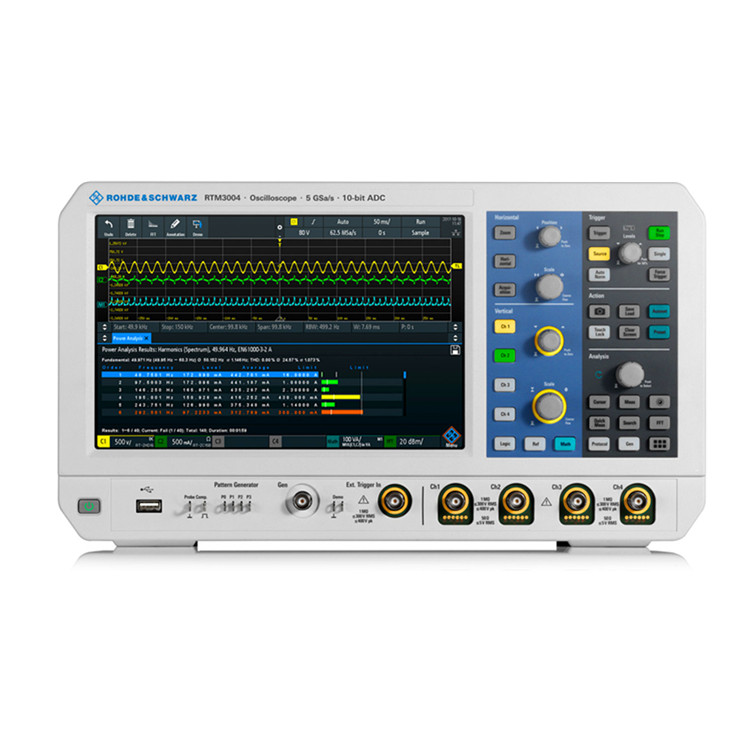

| 型號 : | RTM4000 | 類型 : | 數字示波器 |
| 通道數 : | 4 | 帶寬 : | 100MHz至 1GHz |
| 采樣率 : | 5 Gsample/s | 記錄長度 : | 80 Msample |
| 重量 : | 4 | 加工定制 : | 否 |
產品特點
Z大帶寬：200MHz至 1GHz
Z大採樣率：5 Gsample/s
Z大記憶深度：1 Gsample
Z小RMS noise floor 80uV
10 bits垂直分辨率
顯示屏：10.1英寸電容式觸摸屏
內建USB+LAN標準介面
| Specifications | |||||
| Item | RTA4004 | RTA4004 with | RTA4004 with | RTA4004 with | |
Bandwidth (–3 dB) | 50Ω input | 200 MHz | 350 MHz | 500 MHz | 1 GHz |
1 MΩ input | 200 MHz | 350 MHz | 500 MHz | 500 MHz | |
| Vertical system | |||||
| Vertical resolution | 10 bit, up to 16 bit with high resolution decimation | ||||
| DC gain accuracy | ±1 %... (input sensitivity > 5 mV/div)±1.5 % (input sensitivity ≦ 5 mV/div to ≧ 1 mV/div )±2.5 % (input sensitivity < 1 mV/div) | ||||
| Input sensitivity | 50Ω input | 0.5 mV/div to 1 V/div | |||
1 MΩ input | 0.5 mV/div to 10 V/div | ||||
| RMS noise floor (meas.) | 50Ω input | 0.05mV~22.7mV | 0.07mV~22.8mV | 0.08mV~25.1mV | 0.11mV~31.4mV |
1 MΩ input | 0.09mV~226mV | 0.1mV~250mV | 0.13mV~298mV | 0.13mV~298mV | |
| Maximum input voltage | 50Ω input | 5 V (RMS), max. 30 V (Vp) | |||
1 MΩ input | 300 V (RMS), 400 V (Vp), derates at | ||||
| Rise time | < 1.75 ns | < 1 ns | < 700 ps | < 350 ps | |
| Horizontal system | |||||
| Timebase | range | 0.5 ns/div and 500 s/div | |||
accuracy | ±1 ppm (during calibration interval) | ||||
Trigger system | |||||
| Trigger | level | ±5 div from center of screen | |||
modes | auto, normal, single, n single | ||||
Hold-off range | inactive or 51.2 ns to 13.7 s | ||||
types | edge, width, video, pattern, runt, rise time, | ||||
| Edge trigger A | trigger events | rising edge, falling edge, both edges | |||
coupling | DC, AC (attenuates < 10 Hz (meas.)), | ||||
| Edge trigger A and B | trigger events | rising edge, falling edge, both edges | |||
| Width trigger | events | pulse width is smaller, greater, equal, | |||
pulse width | 3.2 ns ~ 6.8 s | ||||
| Timeout trigger | events | greater than timeout | |||
timeout range | 3.2 ns ~ 6.8 s | ||||
| Video trigger | events | selectable line, all lines, even frame, | |||
supported standards | PAL, NTSC, SECAM, PAL-M, SDTV 576i, | ||||
| Pattern trigger Runt trigger Rise time, fall time Serial bus trigger External trigger input | reference to Specifications Data Sheet | ||||
| Digital channel inputs | D15 to D8, D7 to D0 (RTA-B1 option) | ||||
| Menu languages | Traditional Chinese,Simplified Chinese ,English,German,French, | ||||
| Interface | USB 1 port, type B plug, version 2.0 | ||||
| Choose additional probes | |||||
| Single-ended passive probes | RT-ZP05S | 500 MHz, 10 MΩ, 10:1, 300 V, 10 pF, 5 mm | |||
| RT-ZP10 | 500 MHz, 10 MΩ, 10:1, 400 V, 9.5 pF, 2.5 mm | ||||
| RT-ZP1X | 38 MHz, 1 MΩ, 1:1, 55 V, 39 pF, 2.5 mm | ||||
| Active broadband probes: single-ended | RT-ZS10L | 1.0 GHz, 10:1, 1 MΩ, BNC interface | |||
| RT-ZS10E | 1.0 GHz, active, 1 MΩ, R&S interface | ||||
| RT-ZS10 | 1.0 GHz, active, 1 MΩ, R&S ProbeMeter, micro button, R&S probe interface | ||||
| RT-ZS20 | 1.5 GHz, active, 1 MΩ, R&S ProbeMeter, micro button, R&S probe interface | ||||
| Active broadband probes: differential | RT-ZD10 | 1.0 GHz, active, differential, 1 MΩ, R&S ProbeMeter, micro button, incl. 10:1 external attenuator, 1 MΩ, 70 V DC, 46 V AC (peak), R&S probe interface | |||
| RT-ZD20 | 1.5 GHz, active, differential, 1 MΩ, R&S ProbeMeter, micro button, R&S probe interface | ||||
| RT-ZPR20 Power rail probe | 2.0 GHz, 1:1, 50 kΩ, ±0.85 V, ±60 V offset, R&S probe interface | ||||
| High voltage single-ended passive probes | RT-ZH03 | 250 MHz, 100:1, 100 MΩ, 850 V, 6.5 pF | |||
| RT-ZH10 | 400 MHz, 100:1, 50 MΩ, 1000 V, 7.5 pF | ||||
| RT-ZH11 | 400 MHz, 1000:1, 50 MΩ, 1000 V, 7.5 pF | ||||
| High voltage probes: differential | RT-ZD002 | 25 MHz, 20:1/200:1, 4 MΩ, 1.4 kV (CAT III), BNC interface | |||
| RT-ZD003 | 25 MHz, 10:1/100:14 MΩ, 700 V (CAT II), BNC interface | ||||
| RT-ZD01 | 100 MHz, 8 MΩ, 1 kV (RMS) (CAT III), BNC interface | ||||
| RT-ZD02 | 200 MHz, 10:1, ±20 V, BNC interface | ||||
| RT-ZD08 | 800 MHz, 10:1, 200 kΩ, ±15 V, BNC interface | ||||
| RT-ZHD07 | 200 MHz, 250:1/25:1, 5 MΩ, 750 V (peak), 300 V CAT III, R&S probe interface | ||||
| RT-ZHD15 | 100 MHz, 500:1/50:1, 10 MΩ, 1500 V (peak), 1000 V CAT III, R&S probe interface | ||||
| RT-ZHD16 | 200 MHz, 500:1/50:1, 10 MΩ, 1500 V (peak), 1000 V CAT III, R&S probe interface | ||||
| RT-ZHD60 | 100 MHz, 1000:1/100:1, 40 MΩ, 6000 V (peak), 1000 V CAT III, R&S probe interface | ||||
| Current probes | RT-ZC02 | 20 kHz, AC/DC, 0.01 V/A and 0.001 V/A, ±200 A and ±2000 A, BNC interface | |||
| RT-ZC03 | 100 kHz, AC/DC, 0.1 V/A, 30 A, BNC interface | ||||
| RT-ZC05B | 2 MHz, AC/DC, 0.01 V/A, 500 A (RMS), R&S probe interface | ||||
| RT-ZC10 | 10 MHz, AC/DC, 0.01 V/A, 150 A (RMS), BNC interface | ||||
| RT-ZC10B | 10 MHz, AC/DC, 0.01 V/A, 150 A (RMS), R&S probe interface | ||||
| RT-ZC15B | 50 MHz, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface | ||||
| RT-ZC20 | 100 MHz, AC/DC, 0.1 V/A, 30 A (RMS), BNC interface | ||||
| RT-ZC20B | 100 MHz, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface | ||||
| RT-ZC30 | 120 MHz, AC/DC, 1 V/A, 5 A (RMS), BNC interface | ||||
| EMC near-field probes | HZ-15 | Probe set for E and H near-field measurements, 30 MHz to 3 GHz | |||
| Logic probes | RT-ZL04 | 400 MHz logic probe, 8 channels | |||
| Option | |||||
| Hardware | RTA-B1 | Mixed signal option, additional 16 logic channels | |||
| RTA-B6 | Waveform generator and 4-bit pattern generator | ||||
| Software | RTA-K1 | I2C triggering and decoding and SPI triggering and decoding | |||
| RTA-K2 | UART/RS-232/RS-422/RS-485 triggering and decoding | ||||
| RTA-K3 | CAN triggering and decoding and LIN triggering and decoding | ||||
| RTA-K5 | Audio (I2S, LJ, RJ, TDM) triggering and decoding | ||||
| RTA-K6 | MIL-STD-1553 triggering and decoding | ||||
| RTA-K7 | ARINC 429 triggering and decoding | ||||
| RTA-K18 | Spectrum analysis and spectrogram | ||||
| RTA-K31 | Power analysis | ||||
| RTA-K36 | Frequency response analysis – Bode plot | ||||
